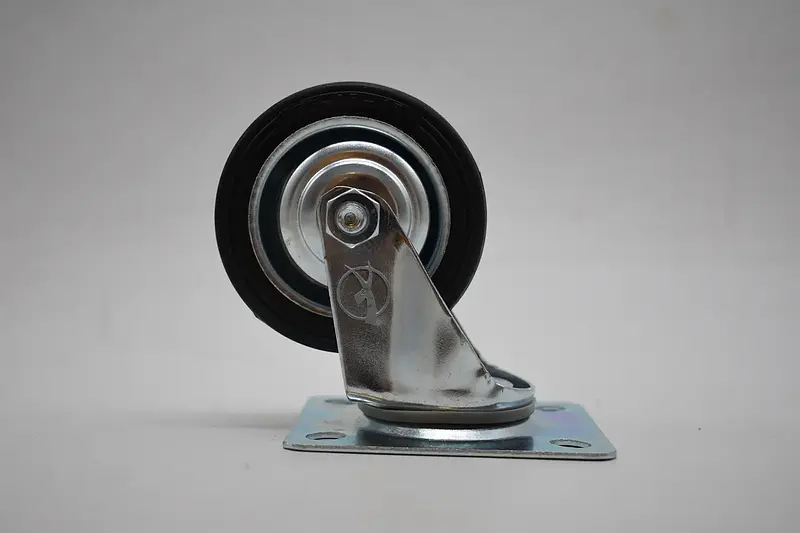

RUEDA NEGRA BASE GIRATORIA

Marca: FAIRMAX SKU R411 - R4115 - R412 - R4125 - R413 - R4131 - R4135 - R414 - R415 - R416 - R418

Categorización

SKU	Medida	Ø	Capacidad	Base	Perno	Espesor
R411	1 IN (25×13 mm)	34.5 mm	20 kg	38×32 mm	30×24 mm	1.2/1.2 mm
R4115	1.5 IN (40×16 mm)	49 mm	24 kg	46×38 mm	36×28 mm	1.2/1.2 mm
R412	2 IN (50×21 mm)	64 mm	28 kg	58×46 mm	46×35 mm	1.5/1.5 mm
R4125	2.5 IN (63×24 mm)	82 mm	33 kg	70×58 mm	55×43 mm	1.8/1.8 mm
R413	3 IN (75×22 mm)	97 mm	40 kg	84×72 mm	62×50 mm	1.8/1.8 mm
R4131	3 IN (75×22 mm)	97 mm	40 kg	84×72 mm	62×50 mm	1.5/1.5 mm
R4135	3.5 IN (85×24 mm)	105 mm	50 kg	102×84 mm	80×60 mm	1.8/1.8 mm
R414	4 IN (100×26 mm)	130 mm	60 kg	102×84 mm	80×60 mm	1.8/1.8 mm
R415	5 IN (125×33 mm)	155 mm	80 kg	102×84 mm	80×60 mm	1.8/1.8 mm
R416	6 IN (160×39 mm)	195 mm	120 kg	135×105 mm	105×75 mm	2.3/2.3 mm
R418	8 IN (200×44 mm)	235 mm	150 kg	135×105 mm	105×75 mm	2.3/2.3 mm

Especificaciones técnicas
